Included schema radiative.xsd
Namespace http://vamdc.org/xml/xsams/1.0
Properties
attribute form default: unqualified
element form default: qualified

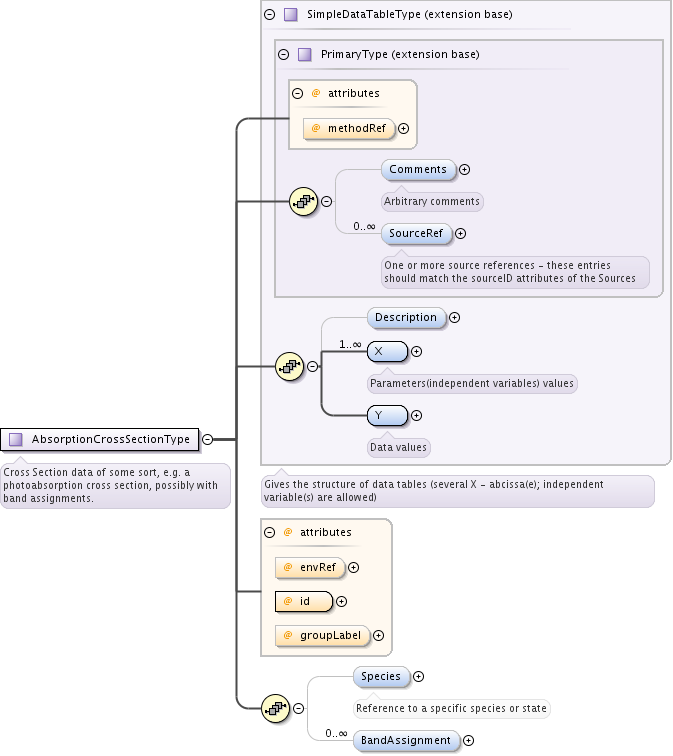

Element RadiativeType / AbsorptionCrossSection
Namespace http://vamdc.org/xml/xsams/1.0
Annotations

Absorption cross section data
Diagram
Diagram typesAttributes_xsd.tmp#id40 typesAttributes_xsd.tmp#id38 typesAttributes_xsd.tmp#id39 typesAttributes_xsd.tmp#id37 typesAttributes_xsd.tmp#id659 typesAttributes_xsd.tmp#id660 typesAttributes_xsd.tmp#id661 typesAttributes_xsd.tmp#id658 radiative_xsd.tmp#id677 radiative_xsd.tmp#id679 radiative_xsd.tmp#id681 radiative_xsd.tmp#id662 radiative_xsd.tmp#id666 radiative_xsd.tmp#id657
Type AbsorptionCrossSectionType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: unbounded
Model Comments{0,1} , SourceRef* , Description{0,1} , X+ , Y , Species{0,1} , BandAssignment*
Children BandAssignment, Comments, Description, SourceRef, Species, X, Y
Instance

<AbsorptionCrossSection envRef="" groupLabel="" id="" methodRef="">
  <Comments>{0,1}</Comments>
  <SourceRef>{0,unbounded}</SourceRef>
</AbsorptionCrossSection>
Attributes
QName Type Fixed Default Use Annotation
envRef EnvironmentRefType optional
groupLabel xs:string optional
id ProcessIDType required
methodRef MethodRefType optional
Source

<xs:element name="AbsorptionCrossSection" type="AbsorptionCrossSectionType" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Absorption cross section data</xs:documentation>
  </xs:annotation>
</xs:element>
Element AbsorptionCrossSectionType / Species
Namespace http://vamdc.org/xml/xsams/1.0
Annotations

Reference to a specific species or state
Diagram
Diagram typesAttributes_xsd.tmp#id664 typesAttributes_xsd.tmp#id665 typesAttributes_xsd.tmp#id663
Type SpeciesStateRefType
Properties
content: complex
minOccurs: 0
Model (SpeciesRef , StateRef{0,1}) | StateRef
Children SpeciesRef, StateRef
Instance

<Species>
  <SpeciesRef>{1,1}</SpeciesRef>
  <StateRef>{0,1}</StateRef>
  <StateRef>{1,1}</StateRef>
</Species>
Source

<xs:element name="Species" type="SpeciesStateRefType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Reference to a specific species or state</xs:documentation>
  </xs:annotation>
</xs:element>
Element AbsorptionCrossSectionType / BandAssignment
Namespace http://vamdc.org/xml/xsams/1.0
Diagram
Diagram typesAttributes_xsd.tmp#id40 typesAttributes_xsd.tmp#id38 typesAttributes_xsd.tmp#id39 typesAttributes_xsd.tmp#id37 radiative_xsd.tmp#id676 radiative_xsd.tmp#id668 radiative_xsd.tmp#id669 radiative_xsd.tmp#id670 radiative_xsd.tmp#id667
Type BandAssignmentType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: unbounded
Model Comments{0,1} , SourceRef* , BandCentre{0,1} , BandWidth{0,1} , Modes*
Children BandCentre, BandWidth, Comments, Modes, SourceRef
Instance

<BandAssignment methodRef="" name="">
  <Comments>{0,1}</Comments>
  <SourceRef>{0,unbounded}</SourceRef>
</BandAssignment>
Attributes
QName Type Fixed Default Use Annotation
methodRef MethodRefType optional
name xs:string optional
Source

<xs:element name="BandAssignment" type="BandAssignmentType" minOccurs="0" maxOccurs="unbounded"/>
Element BandAssignmentType / BandCentre
Namespace http://vamdc.org/xml/xsams/1.0
Diagram
Diagram typesAttributes_xsd.tmp#id40 typesAttributes_xsd.tmp#id38 typesAttributes_xsd.tmp#id39 typesAttributes_xsd.tmp#id37 typesAttributes_xsd.tmp#id44 typesAttributes_xsd.tmp#id48 typesAttributes_xsd.tmp#id52 typesAttributes_xsd.tmp#id43
Type DataType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model Comments{0,1} , SourceRef* , Value , Evaluation* , Accuracy*
Children Accuracy, Comments, Evaluation, SourceRef, Value
Instance

<BandCentre methodRef="">
  <Comments>{0,1}</Comments>
  <SourceRef>{0,unbounded}</SourceRef>
</BandCentre>
Attributes
QName Type Fixed Default Use Annotation
methodRef MethodRefType optional
Source

<xs:element name="BandCentre" type="DataType" minOccurs="0" maxOccurs="1"/>
Element BandAssignmentType / BandWidth
Namespace http://vamdc.org/xml/xsams/1.0
Diagram
Diagram typesAttributes_xsd.tmp#id40 typesAttributes_xsd.tmp#id38 typesAttributes_xsd.tmp#id39 typesAttributes_xsd.tmp#id37 typesAttributes_xsd.tmp#id44 typesAttributes_xsd.tmp#id48 typesAttributes_xsd.tmp#id52 typesAttributes_xsd.tmp#id43
Type DataType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model Comments{0,1} , SourceRef* , Value , Evaluation* , Accuracy*
Children Accuracy, Comments, Evaluation, SourceRef, Value
Instance

<BandWidth methodRef="">
  <Comments>{0,1}</Comments>
  <SourceRef>{0,unbounded}</SourceRef>
</BandWidth>
Attributes
QName Type Fixed Default Use Annotation
methodRef MethodRefType optional
Source

<xs:element name="BandWidth" type="DataType" minOccurs="0" maxOccurs="1"/>
Element BandAssignmentType / Modes
Namespace http://vamdc.org/xml/xsams/1.0
Diagram
Diagram typesAttributes_xsd.tmp#id40 typesAttributes_xsd.tmp#id38 typesAttributes_xsd.tmp#id39 typesAttributes_xsd.tmp#id37 radiative_xsd.tmp#id675 radiative_xsd.tmp#id672 radiative_xsd.tmp#id671
Type ModesType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: unbounded
Model Comments{0,1} , SourceRef* , DeltaV*
Children Comments, DeltaV, SourceRef
Instance

<Modes methodRef="" name="">
  <Comments>{0,1}</Comments>
  <SourceRef>{0,unbounded}</SourceRef>
</Modes>
Attributes
QName Type Fixed Default Use Annotation
methodRef MethodRefType optional
name xs:string optional
Source

<xs:element name="Modes" type="ModesType" minOccurs="0" maxOccurs="unbounded"/>
Element ModesType / DeltaV
Namespace http://vamdc.org/xml/xsams/1.0
Diagram
Diagram radiative_xsd.tmp#id673
Type extension of xs:nonNegativeInteger
Properties
content: complex
minOccurs: 0
maxOccurs: unbounded
Attributes
QName Type Fixed Default Use Annotation
modeID NormalModeRefType optional
Source

<xs:element name="DeltaV" minOccurs="0" maxOccurs="unbounded">
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="xs:nonNegativeInteger">
        <xs:attribute name="modeID" type="NormalModeRefType"/>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

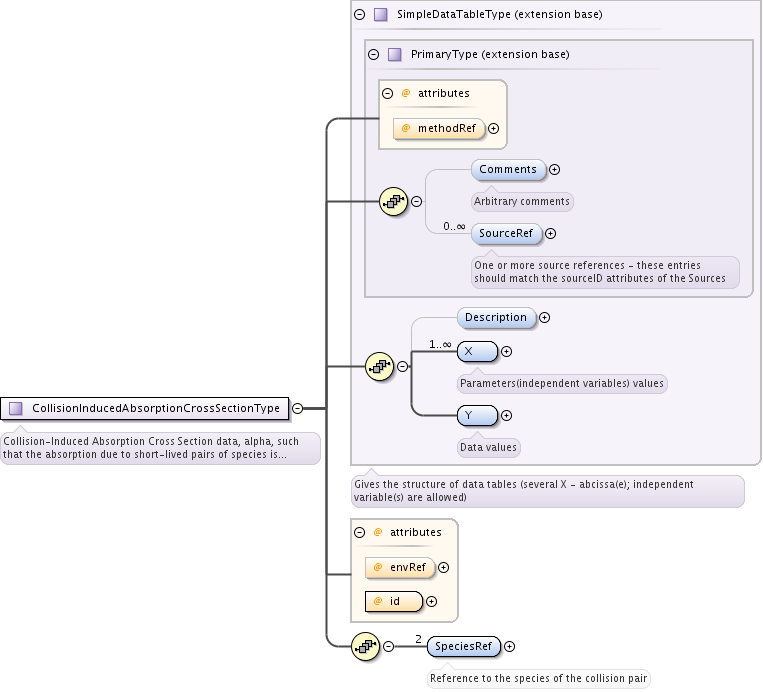

Element RadiativeType / CollisionInducedAbsorptionCrossSection
Namespace http://vamdc.org/xml/xsams/1.0
Annotations

Absorption cross section data
Diagram
Diagram typesAttributes_xsd.tmp#id40 typesAttributes_xsd.tmp#id38 typesAttributes_xsd.tmp#id39 typesAttributes_xsd.tmp#id37 typesAttributes_xsd.tmp#id659 typesAttributes_xsd.tmp#id660 typesAttributes_xsd.tmp#id661 typesAttributes_xsd.tmp#id658 radiative_xsd.tmp#id685 radiative_xsd.tmp#id686 radiative_xsd.tmp#id684 radiative_xsd.tmp#id683
Type CollisionInducedAbsorptionCrossSectionType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: unbounded
Model Comments{0,1} , SourceRef* , Description{0,1} , X+ , Y , SpeciesRef{2,2}
Children Comments, Description, SourceRef, SpeciesRef, X, Y
Instance

<CollisionInducedAbsorptionCrossSection envRef="" id="" methodRef="">
  <Comments>{0,1}</Comments>
  <SourceRef>{0,unbounded}</SourceRef>
</CollisionInducedAbsorptionCrossSection>
Attributes
QName Type Fixed Default Use Annotation
envRef EnvironmentRefType optional
id ProcessIDType required
methodRef MethodRefType optional
Source

<xs:element name="CollisionInducedAbsorptionCrossSection" type="CollisionInducedAbsorptionCrossSectionType" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Absorption cross section data</xs:documentation>
  </xs:annotation>
</xs:element>
Element CollisionInducedAbsorptionCrossSectionType / SpeciesRef
Namespace http://vamdc.org/xml/xsams/1.0
Annotations

Reference to the species of the collision pair
Diagram
Diagram typesAttributes_xsd.tmp#id69
Type SpeciesRefType
Properties
content: simple
minOccurs: 2
maxOccurs: 2
Facets
pattern (\i\c*) & ([\i-[:]][\c-[:]]*) & (X.+)
Source

<xs:element name="SpeciesRef" type="SpeciesRefType" minOccurs="2" maxOccurs="2">
  <xs:annotation>
    <xs:documentation>Reference to the species of the collision pair</xs:documentation>
  </xs:annotation>
</xs:element>
Element RadiativeType / RadiativeTransition
Namespace http://vamdc.org/xml/xsams/1.0
Annotations

Description of a specific radiative transition
Diagram
Diagram typesAttributes_xsd.tmp#id40 typesAttributes_xsd.tmp#id38 typesAttributes_xsd.tmp#id39 typesAttributes_xsd.tmp#id37 radiative_xsd.tmp#id760 radiative_xsd.tmp#id761 radiative_xsd.tmp#id762 radiative_xsd.tmp#id689 radiative_xsd.tmp#id699 radiative_xsd.tmp#id700 radiative_xsd.tmp#id701 radiative_xsd.tmp#id702 radiative_xsd.tmp#id715 radiative_xsd.tmp#id722 radiative_xsd.tmp#id727 radiative_xsd.tmp#id755 radiative_xsd.tmp#id688
Type RadiativeTransitionType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: unbounded
Model Comments{0,1} , SourceRef* , EnergyWavelength , UpperStateRef{0,1} , LowerStateRef{0,1} , SpeciesRef{0,1} , Probability* , ProcessClass* , SatelliteLine* , Broadening* , Shifting*
Children Broadening, Comments, EnergyWavelength, LowerStateRef, Probability, ProcessClass, SatelliteLine, Shifting, SourceRef, SpeciesRef, UpperStateRef
Instance

<RadiativeTransition groupLabel="" id="" methodRef="" process="">
  <Comments>{0,1}</Comments>
  <SourceRef>{0,unbounded}</SourceRef>
</RadiativeTransition>
Attributes
QName Type Fixed Default Use Annotation
groupLabel xs:string optional
id ProcessIDType required
methodRef MethodRefType optional
process TransitionType optional
Source

<xs:element name="RadiativeTransition" type="RadiativeTransitionType" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Description of a specific radiative transition</xs:documentation>
  </xs:annotation>
</xs:element>
Element RadiativeTransitionType / EnergyWavelength
Namespace http://vamdc.org/xml/xsams/1.0
Annotations

List of energy/spectrum parameters
Diagram
Diagram typesAttributes_xsd.tmp#id40 typesAttributes_xsd.tmp#id38 typesAttributes_xsd.tmp#id39 typesAttributes_xsd.tmp#id37 radiative_xsd.tmp#id691 radiative_xsd.tmp#id692 radiative_xsd.tmp#id697 radiative_xsd.tmp#id698 radiative_xsd.tmp#id690
Type EnergyWavelengthType
Type hierarchy
Properties
content: complex
Model Comments{0,1} , SourceRef* , Wavenumber* , Wavelength* , Energy* , Frequency*
Children Comments, Energy, Frequency, SourceRef, Wavelength, Wavenumber
Instance

<EnergyWavelength methodRef="">
  <Comments>{0,1}</Comments>
  <SourceRef>{0,unbounded}</SourceRef>
</EnergyWavelength>
Attributes
QName Type Fixed Default Use Annotation
methodRef MethodRefType optional
Source

<xs:element name="EnergyWavelength" type="EnergyWavelengthType">
  <xs:annotation>
    <xs:documentation>List of energy/spectrum parameters</xs:documentation>
  </xs:annotation>
</xs:element>
Element EnergyWavelengthType / Wavenumber
Namespace http://vamdc.org/xml/xsams/1.0
Annotations

Transition wavenumber
Diagram
Diagram typesAttributes_xsd.tmp#id40 typesAttributes_xsd.tmp#id38 typesAttributes_xsd.tmp#id39 typesAttributes_xsd.tmp#id37 typesAttributes_xsd.tmp#id44 typesAttributes_xsd.tmp#id48 typesAttributes_xsd.tmp#id52 typesAttributes_xsd.tmp#id43
Type DataType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: unbounded
Model Comments{0,1} , SourceRef* , Value , Evaluation* , Accuracy*
Children Accuracy, Comments, Evaluation, SourceRef, Value
Instance

<Wavenumber methodRef="">
  <Comments>{0,1}</Comments>
  <SourceRef>{0,unbounded}</SourceRef>
</Wavenumber>
Attributes
QName Type Fixed Default Use Annotation
methodRef MethodRefType optional
Source

<xs:element name="Wavenumber" type="DataType" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Transition wavenumber</xs:documentation>
  </xs:annotation>
</xs:element>
Element EnergyWavelengthType / Wavelength
Namespace http://vamdc.org/xml/xsams/1.0
Annotations

Transition wavelength
Diagram
Diagram typesAttributes_xsd.tmp#id40 typesAttributes_xsd.tmp#id38 typesAttributes_xsd.tmp#id39 typesAttributes_xsd.tmp#id37 typesAttributes_xsd.tmp#id44 typesAttributes_xsd.tmp#id48 typesAttributes_xsd.tmp#id52 typesAttributes_xsd.tmp#id43 radiative_xsd.tmp#id695 radiative_xsd.tmp#id696 radiative_xsd.tmp#id694 radiative_xsd.tmp#id693
Type wlType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: unbounded
Model Comments{0,1} , SourceRef* , Value , Evaluation* , Accuracy* , AirToVacuum{0,1}
Children Accuracy, AirToVacuum, Comments, Evaluation, SourceRef, Value
Instance

<Wavelength envRef="" methodRef="" vacuum="true">
  <Comments>{0,1}</Comments>
  <SourceRef>{0,unbounded}</SourceRef>
</Wavelength>
Attributes
QName Type Fixed Default Use Annotation
envRef EnvironmentRefType optional
methodRef MethodRefType optional
vacuum xs:boolean true optional
Source

<xs:element name="Wavelength" type="wlType" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Transition wavelength</xs:documentation>
  </xs:annotation>
</xs:element>
Element wlType / AirToVacuum
Namespace http://vamdc.org/xml/xsams/1.0
Annotations
Diagram
Diagram typesAttributes_xsd.tmp#id40 typesAttributes_xsd.tmp#id38 typesAttributes_xsd.tmp#id39 typesAttributes_xsd.tmp#id37 typesAttributes_xsd.tmp#id44 typesAttributes_xsd.tmp#id48 typesAttributes_xsd.tmp#id52 typesAttributes_xsd.tmp#id43
Type DataType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model Comments{0,1} , SourceRef* , Value , Evaluation* , Accuracy*
Children Accuracy, Comments, Evaluation, SourceRef, Value
Instance

<AirToVacuum methodRef="">
  <Comments>{0,1}</Comments>
  <SourceRef>{0,unbounded}</SourceRef>
</AirToVacuum>
Attributes
QName Type Fixed Default Use Annotation
methodRef MethodRefType optional
Source

<xs:element name="AirToVacuum" type="DataType" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation/>
  </xs:annotation>
</xs:element>
Element EnergyWavelengthType / Energy
Namespace http://vamdc.org/xml/xsams/1.0
Annotations

Transition energy
Diagram
Diagram typesAttributes_xsd.tmp#id40 typesAttributes_xsd.tmp#id38 typesAttributes_xsd.tmp#id39 typesAttributes_xsd.tmp#id37 typesAttributes_xsd.tmp#id44 typesAttributes_xsd.tmp#id48 typesAttributes_xsd.tmp#id52 typesAttributes_xsd.tmp#id43
Type DataType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: unbounded
Model Comments{0,1} , SourceRef* , Value , Evaluation* , Accuracy*
Children Accuracy, Comments, Evaluation, SourceRef, Value
Instance

<Energy methodRef="">
  <Comments>{0,1}</Comments>
  <SourceRef>{0,unbounded}</SourceRef>
</Energy>
Attributes
QName Type Fixed Default Use Annotation
methodRef MethodRefType optional
Source

<xs:element name="Energy" type="DataType" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Transition energy</xs:documentation>
  </xs:annotation>
</xs:element>
Element EnergyWavelengthType / Frequency
Namespace http://vamdc.org/xml/xsams/1.0
Annotations

Transition frequency
Diagram
Diagram typesAttributes_xsd.tmp#id40 typesAttributes_xsd.tmp#id38 typesAttributes_xsd.tmp#id39 typesAttributes_xsd.tmp#id37 typesAttributes_xsd.tmp#id44 typesAttributes_xsd.tmp#id48 typesAttributes_xsd.tmp#id52 typesAttributes_xsd.tmp#id43
Type DataType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: unbounded
Model Comments{0,1} , SourceRef* , Value , Evaluation* , Accuracy*
Children Accuracy, Comments, Evaluation, SourceRef, Value
Instance

<Frequency methodRef="">
  <Comments>{0,1}</Comments>
  <SourceRef>{0,unbounded}</SourceRef>
</Frequency>
Attributes
QName Type Fixed Default Use Annotation
methodRef MethodRefType optional
Source

<xs:element name="Frequency" type="DataType" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Transition frequency</xs:documentation>
  </xs:annotation>
</xs:element>
Element RadiativeTransitionType / UpperStateRef
Namespace http://vamdc.org/xml/xsams/1.0
Annotations

Reference to the upper state
Diagram
Diagram typesAttributes_xsd.tmp#id248
Type StateRefType
Properties
content: simple
minOccurs: 0
Facets
pattern (\i\c*) & ([\i-[:]][\c-[:]]*) & (S.+)
Source

<xs:element name="UpperStateRef" type="StateRefType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Reference to the upper state</xs:documentation>
  </xs:annotation>
</xs:element>
Element RadiativeTransitionType / LowerStateRef
Namespace http://vamdc.org/xml/xsams/1.0
Annotations

Reference to the lower state
Diagram
Diagram typesAttributes_xsd.tmp#id248
Type StateRefType
Properties
content: simple
minOccurs: 0
Facets
pattern (\i\c*) & ([\i-[:]][\c-[:]]*) & (S.+)
Source

<xs:element name="LowerStateRef" type="StateRefType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Reference to the lower state</xs:documentation>
  </xs:annotation>
</xs:element>
Element RadiativeTransitionType / SpeciesRef
Namespace http://vamdc.org/xml/xsams/1.0
Annotations

Reference to specie
Diagram
Diagram typesAttributes_xsd.tmp#id69
Type SpeciesRefType
Properties
content: simple
minOccurs: 0
Facets
pattern (\i\c*) & ([\i-[:]][\c-[:]]*) & (X.+)
Source

<xs:element name="SpeciesRef" type="SpeciesRefType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Reference to specie</xs:documentation>
  </xs:annotation>
</xs:element>
Element RadiativeTransitionType / Probability
Namespace http://vamdc.org/xml/xsams/1.0
Annotations

Radiative transition probability and related parameters
Diagram
Diagram typesAttributes_xsd.tmp#id40 typesAttributes_xsd.tmp#id38 typesAttributes_xsd.tmp#id39 typesAttributes_xsd.tmp#id37 radiative_xsd.tmp#id704 radiative_xsd.tmp#id705 radiative_xsd.tmp#id706 radiative_xsd.tmp#id707 radiative_xsd.tmp#id708 radiative_xsd.tmp#id709 radiative_xsd.tmp#id710 radiative_xsd.tmp#id712 radiative_xsd.tmp#id714 radiative_xsd.tmp#id703
Type RadiativeTransitionProbabilityType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: unbounded
Model Comments{0,1} , SourceRef* , TransitionProbabilityA{0,1} , OscillatorStrength{0,1} , LineStrength{0,1} , WeightedOscillatorStrength{0,1} , Log10WeightedOscillatorStrength{0,1} , IdealisedIntensity{0,1} , Multipole* , TransitionKind{0,1} , EffectiveLandeFactor{0,1}
Children Comments, EffectiveLandeFactor, IdealisedIntensity, LineStrength, Log10WeightedOscillatorStrength, Multipole, OscillatorStrength, SourceRef, TransitionKind, TransitionProbabilityA, WeightedOscillatorStrength
Instance

<Probability methodRef="">
  <Comments>{0,1}</Comments>
  <SourceRef>{0,unbounded}</SourceRef>
</Probability>
Attributes
QName Type Fixed Default Use Annotation
methodRef MethodRefType optional
Source

<xs:element name="Probability" type="RadiativeTransitionProbabilityType" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Radiative transition probability and related parameters</xs:documentation>
  </xs:annotation>
</xs:element>
Element RadiativeTransitionProbabilityType / TransitionProbabilityA
Namespace http://vamdc.org/xml/xsams/1.0
Annotations

Transition probability (Einstein coefficient)
Diagram
Diagram typesAttributes_xsd.tmp#id40 typesAttributes_xsd.tmp#id38 typesAttributes_xsd.tmp#id39 typesAttributes_xsd.tmp#id37 typesAttributes_xsd.tmp#id44 typesAttributes_xsd.tmp#id48 typesAttributes_xsd.tmp#id52 typesAttributes_xsd.tmp#id43
Type DataType
Type hierarchy
Properties
content: complex
minOccurs: 0
Model Comments{0,1} , SourceRef* , Value , Evaluation* , Accuracy*
Children Accuracy, Comments, Evaluation, SourceRef, Value
Instance

<TransitionProbabilityA methodRef="">
  <Comments>{0,1}</Comments>
  <SourceRef>{0,unbounded}</SourceRef>
</TransitionProbabilityA>
Attributes
QName Type Fixed Default Use Annotation
methodRef MethodRefType optional
Source

<xs:element name="TransitionProbabilityA" type="DataType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Transition probability (Einstein coefficient)</xs:documentation>
  </xs:annotation>
</xs:element>
Element RadiativeTransitionProbabilityType / OscillatorStrength
Namespace http://vamdc.org/xml/xsams/1.0
Annotations

Oscillator strength
Diagram
Diagram typesAttributes_xsd.tmp#id40 typesAttributes_xsd.tmp#id38 typesAttributes_xsd.tmp#id39 typesAttributes_xsd.tmp#id37 typesAttributes_xsd.tmp#id44 typesAttributes_xsd.tmp#id48 typesAttributes_xsd.tmp#id52 typesAttributes_xsd.tmp#id43
Type DataType
Type hierarchy
Properties
content: complex
minOccurs: 0
Model Comments{0,1} , SourceRef* , Value , Evaluation* , Accuracy*
Children Accuracy, Comments, Evaluation, SourceRef, Value
Instance

<OscillatorStrength methodRef="">
  <Comments>{0,1}</Comments>
  <SourceRef>{0,unbounded}</SourceRef>
</OscillatorStrength>
Attributes
QName Type Fixed Default Use Annotation
methodRef MethodRefType optional
Source

<xs:element name="OscillatorStrength" type="DataType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Oscillator strength</xs:documentation>
  </xs:annotation>
</xs:element>
Element RadiativeTransitionProbabilityType / LineStrength
Namespace http://vamdc.org/xml/xsams/1.0
Annotations

Line strength
Diagram
Diagram typesAttributes_xsd.tmp#id40 typesAttributes_xsd.tmp#id38 typesAttributes_xsd.tmp#id39 typesAttributes_xsd.tmp#id37 typesAttributes_xsd.tmp#id44 typesAttributes_xsd.tmp#id48 typesAttributes_xsd.tmp#id52 typesAttributes_xsd.tmp#id43
Type DataType
Type hierarchy
Properties
content: complex
minOccurs: 0
Model Comments{0,1} , SourceRef* , Value , Evaluation* , Accuracy*
Children Accuracy, Comments, Evaluation, SourceRef, Value
Instance

<LineStrength methodRef="">
  <Comments>{0,1}</Comments>
  <SourceRef>{0,unbounded}</SourceRef>
</LineStrength>
Attributes
QName Type Fixed Default Use Annotation
methodRef MethodRefType optional
Source

<xs:element name="LineStrength" type="DataType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Line strength</xs:documentation>
  </xs:annotation>
</xs:element>
Element RadiativeTransitionProbabilityType / WeightedOscillatorStrength
Namespace http://vamdc.org/xml/xsams/1.0
Annotations

Weighted oscillator strength
Diagram
Diagram typesAttributes_xsd.tmp#id40 typesAttributes_xsd.tmp#id38 typesAttributes_xsd.tmp#id39 typesAttributes_xsd.tmp#id37 typesAttributes_xsd.tmp#id44 typesAttributes_xsd.tmp#id48 typesAttributes_xsd.tmp#id52 typesAttributes_xsd.tmp#id43
Type DataType
Type hierarchy
Properties
content: complex
minOccurs: 0
Model Comments{0,1} , SourceRef* , Value , Evaluation* , Accuracy*
Children Accuracy, Comments, Evaluation, SourceRef, Value
Instance

<WeightedOscillatorStrength methodRef="">
  <Comments>{0,1}</Comments>
  <SourceRef>{0,unbounded}</SourceRef>
</WeightedOscillatorStrength>
Attributes
QName Type Fixed Default Use Annotation
methodRef MethodRefType optional
Source

<xs:element name="WeightedOscillatorStrength" type="DataType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Weighted oscillator strength</xs:documentation>
  </xs:annotation>
</xs:element>
Element RadiativeTransitionProbabilityType / Log10WeightedOscillatorStrength
Namespace http://vamdc.org/xml/xsams/1.0
Annotations

Log10 of the weighted oscillator strength
Diagram
Diagram typesAttributes_xsd.tmp#id40 typesAttributes_xsd.tmp#id38 typesAttributes_xsd.tmp#id39 typesAttributes_xsd.tmp#id37 typesAttributes_xsd.tmp#id44 typesAttributes_xsd.tmp#id48 typesAttributes_xsd.tmp#id52 typesAttributes_xsd.tmp#id43
Type DataType
Type hierarchy
Properties
content: complex
minOccurs: 0
Model Comments{0,1} , SourceRef* , Value , Evaluation* , Accuracy*
Children Accuracy, Comments, Evaluation, SourceRef, Value
Instance

<Log10WeightedOscillatorStrength methodRef="">
  <Comments>{0,1}</Comments>
  <SourceRef>{0,unbounded}</SourceRef>
</Log10WeightedOscillatorStrength>
Attributes
QName Type Fixed Default Use Annotation
methodRef MethodRefType optional
Source

<xs:element name="Log10WeightedOscillatorStrength" type="DataType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Log10 of the weighted oscillator strength</xs:documentation>
  </xs:annotation>
</xs:element>
Element RadiativeTransitionProbabilityType / IdealisedIntensity
Namespace http://vamdc.org/xml/xsams/1.0
Annotations

Line intensity for some specific conditions.
Diagram
Diagram typesAttributes_xsd.tmp#id40 typesAttributes_xsd.tmp#id38 typesAttributes_xsd.tmp#id39 typesAttributes_xsd.tmp#id37 typesAttributes_xsd.tmp#id44 typesAttributes_xsd.tmp#id48 typesAttributes_xsd.tmp#id52 typesAttributes_xsd.tmp#id43
Type DataType
Type hierarchy
Properties
content: complex
minOccurs: 0
Model Comments{0,1} , SourceRef* , Value , Evaluation* , Accuracy*
Children Accuracy, Comments, Evaluation, SourceRef, Value
Instance

<IdealisedIntensity methodRef="">
  <Comments>{0,1}</Comments>
  <SourceRef>{0,unbounded}</SourceRef>
</IdealisedIntensity>
Attributes
QName Type Fixed Default Use Annotation
methodRef MethodRefType optional
Source

<xs:element name="IdealisedIntensity" type="DataType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Line intensity for some specific conditions.</xs:documentation>
  </xs:annotation>
</xs:element>
Element RadiativeTransitionProbabilityType / Multipole
Namespace http://vamdc.org/xml/xsams/1.0
Annotations

Transition multipole characterisation. Example: E2, M2
Diagram
Diagram radiative_xsd.tmp#id711
Type MultipoleType
Properties
content: simple
minOccurs: 0
maxOccurs: unbounded
Facets
pattern (E|M)[1-9]\d*
Source

<xs:element name="Multipole" type="MultipoleType" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Transition multipole characterisation. Example: E2, M2</xs:documentation>
  </xs:annotation>
</xs:element>
Element RadiativeTransitionProbabilityType / TransitionKind
Namespace http://vamdc.org/xml/xsams/1.0
Annotations

Transition kind (polarizability)
Diagram
Diagram radiative_xsd.tmp#id713
Type TransitionKindType
Properties
content: simple
minOccurs: 0
Facets
pattern Polarizability
Source

<xs:element name="TransitionKind" type="TransitionKindType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Transition kind (polarizability)</xs:documentation>
  </xs:annotation>
</xs:element>
Element RadiativeTransitionProbabilityType / EffectiveLandeFactor
Namespace http://vamdc.org/xml/xsams/1.0
Annotations

Effective Lande factor for transition
Diagram
Diagram typesAttributes_xsd.tmp#id40 typesAttributes_xsd.tmp#id38 typesAttributes_xsd.tmp#id39 typesAttributes_xsd.tmp#id37 typesAttributes_xsd.tmp#id44 typesAttributes_xsd.tmp#id48 typesAttributes_xsd.tmp#id52 typesAttributes_xsd.tmp#id43
Type DataType
Type hierarchy
Properties
content: complex
minOccurs: 0
Model Comments{0,1} , SourceRef* , Value , Evaluation* , Accuracy*
Children Accuracy, Comments, Evaluation, SourceRef, Value
Instance

<EffectiveLandeFactor methodRef="">
  <Comments>{0,1}</Comments>
  <SourceRef>{0,unbounded}</SourceRef>
</EffectiveLandeFactor>
Attributes
QName Type Fixed Default Use Annotation
methodRef MethodRefType optional
Source

<xs:element name="EffectiveLandeFactor" type="DataType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Effective Lande factor for transition</xs:documentation>
  </xs:annotation>
</xs:element>
Element RadiativeTransitionType / ProcessClass
Namespace http://vamdc.org/xml/xsams/1.0
Annotations

process description
Diagram
Diagram typesAttributes_xsd.tmp#id717 typesAttributes_xsd.tmp#id718 typesAttributes_xsd.tmp#id720 typesAttributes_xsd.tmp#id716
Type ProcessClassType
Properties
content: complex
minOccurs: 0
maxOccurs: unbounded
Model UserDefinition{0,1} , Code* , IAEACode*
Children Code, IAEACode, UserDefinition
Instance

<ProcessClass>
  <UserDefinition>{0,1}</UserDefinition>
  <Code>{0,unbounded}</Code>
  <IAEACode>{0,unbounded}</IAEACode>
</ProcessClass>
Source

<xs:element name="ProcessClass" type="ProcessClassType" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>process description</xs:documentation>
  </xs:annotation>
</xs:element>
Element RadiativeTransitionType / SatelliteLine
Namespace http://vamdc.org/xml/xsams/1.0
Annotations

Satellite line properties
Diagram
Diagram radiative_xsd.tmp#id724 radiative_xsd.tmp#id725 radiative_xsd.tmp#id726 radiative_xsd.tmp#id723
Type SatelliteLineProperties
Properties
content: complex
minOccurs: 0
maxOccurs: unbounded
Model DielectronicIntensityFactor{0,1} , CollisionalIntensityFactor{0,1} , BranchingRatio{0,1}
Children BranchingRatio, CollisionalIntensityFactor, DielectronicIntensityFactor
Instance

<SatelliteLine>
  <DielectronicIntensityFactor methodRef="">{0,1}</DielectronicIntensityFactor>
  <CollisionalIntensityFactor methodRef="">{0,1}</CollisionalIntensityFactor>
  <BranchingRatio methodRef="">{0,1}</BranchingRatio>
</SatelliteLine>
Source

<xs:element name="SatelliteLine" type="SatelliteLineProperties" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Satellite line properties</xs:documentation>
  </xs:annotation>
</xs:element>
Element SatelliteLineProperties / DielectronicIntensityFactor
Namespace http://vamdc.org/xml/xsams/1.0
Annotations

Dielectronic satellite intensity factor
Diagram
Diagram typesAttributes_xsd.tmp#id40 typesAttributes_xsd.tmp#id38 typesAttributes_xsd.tmp#id39 typesAttributes_xsd.tmp#id37 typesAttributes_xsd.tmp#id44 typesAttributes_xsd.tmp#id48 typesAttributes_xsd.tmp#id52 typesAttributes_xsd.tmp#id43
Type DataType
Type hierarchy
Properties
content: complex
minOccurs: 0
Model Comments{0,1} , SourceRef* , Value , Evaluation* , Accuracy*
Children Accuracy, Comments, Evaluation, SourceRef, Value
Instance

<DielectronicIntensityFactor methodRef="">
  <Comments>{0,1}</Comments>
  <SourceRef>{0,unbounded}</SourceRef>
</DielectronicIntensityFactor>
Attributes
QName Type Fixed Default Use Annotation
methodRef MethodRefType optional
Source

<xs:element name="DielectronicIntensityFactor" type="DataType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Dielectronic satellite intensity factor</xs:documentation>
  </xs:annotation>
</xs:element>
Element SatelliteLineProperties / CollisionalIntensityFactor
Namespace http://vamdc.org/xml/xsams/1.0
Annotations

Collisional satellite intensity factor
Diagram
Diagram typesAttributes_xsd.tmp#id40 typesAttributes_xsd.tmp#id38 typesAttributes_xsd.tmp#id39 typesAttributes_xsd.tmp#id37 typesAttributes_xsd.tmp#id44 typesAttributes_xsd.tmp#id48 typesAttributes_xsd.tmp#id52 typesAttributes_xsd.tmp#id43
Type DataType
Type hierarchy
Properties
content: complex
minOccurs: 0
Model Comments{0,1} , SourceRef* , Value , Evaluation* , Accuracy*
Children Accuracy, Comments, Evaluation, SourceRef, Value
Instance

<CollisionalIntensityFactor methodRef="">
  <Comments>{0,1}</Comments>
  <SourceRef>{0,unbounded}</SourceRef>
</CollisionalIntensityFactor>
Attributes
QName Type Fixed Default Use Annotation
methodRef MethodRefType optional
Source

<xs:element name="CollisionalIntensityFactor" type="DataType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Collisional satellite intensity factor</xs:documentation>
  </xs:annotation>
</xs:element>
Element SatelliteLineProperties / BranchingRatio
Namespace http://vamdc.org/xml/xsams/1.0
Annotations

Satellite branching ratio
Diagram
Diagram typesAttributes_xsd.tmp#id40 typesAttributes_xsd.tmp#id38 typesAttributes_xsd.tmp#id39 typesAttributes_xsd.tmp#id37 typesAttributes_xsd.tmp#id44 typesAttributes_xsd.tmp#id48 typesAttributes_xsd.tmp#id52 typesAttributes_xsd.tmp#id43
Type DataType
Type hierarchy
Properties
content: complex
minOccurs: 0
Model Comments{0,1} , SourceRef* , Value , Evaluation* , Accuracy*
Children Accuracy, Comments, Evaluation, SourceRef, Value
Instance

<BranchingRatio methodRef="">
  <Comments>{0,1}</Comments>
  <SourceRef>{0,unbounded}</SourceRef>
</BranchingRatio>
Attributes
QName Type Fixed Default Use Annotation
methodRef MethodRefType optional
Source

<xs:element name="BranchingRatio" type="DataType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Satellite branching ratio</xs:documentation>
  </xs:annotation>
</xs:element>
Element RadiativeTransitionType / Broadening
Namespace http://vamdc.org/xml/xsams/1.0
Annotations

Description of line broadening processes and related parameters
Diagram
Diagram typesAttributes_xsd.tmp#id40 typesAttributes_xsd.tmp#id38 typesAttributes_xsd.tmp#id39 typesAttributes_xsd.tmp#id37 radiative_xsd.tmp#id753 radiative_xsd.tmp#id754 radiative_xsd.tmp#id729 radiative_xsd.tmp#id728
Type BroadeningType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: unbounded
Model Comments{0,1} , SourceRef* , Lineshape+
Children Comments, Lineshape, SourceRef
Instance

<Broadening envRef="" methodRef="" name="">
  <Comments>{0,1}</Comments>
  <SourceRef>{0,unbounded}</SourceRef>
</Broadening>
Attributes
QName Type Fixed Default Use Annotation
envRef EnvironmentRefType optional
methodRef MethodRefType optional
name xs:string required
Broadening name
Source

<xs:element name="Broadening" type="BroadeningType" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Description of line broadening processes and related parameters</xs:documentation>
  </xs:annotation>
</xs:element>
Element BroadeningType / Lineshape
Namespace http://vamdc.org/xml/xsams/1.0
Diagram
Diagram typesAttributes_xsd.tmp#id40 typesAttributes_xsd.tmp#id38 typesAttributes_xsd.tmp#id39 typesAttributes_xsd.tmp#id37 radiative_xsd.tmp#id751 radiative_xsd.tmp#id752 radiative_xsd.tmp#id731 radiative_xsd.tmp#id730
Type LineshapeType
Type hierarchy
Properties
content: complex
minOccurs: 1
maxOccurs: unbounded
Model Comments{0,1} , SourceRef* , LineshapeParameter+
Children Comments, LineshapeParameter, SourceRef
Instance

<Lineshape functionRef="" methodRef="" name="">
  <Comments>{0,1}</Comments>
  <SourceRef>{0,unbounded}</SourceRef>
</Lineshape>
Attributes
QName Type Fixed Default Use Annotation
functionRef FunctionRefType optional
Arbitrary function for lineshape representation,
may be used if some special lineshape, not defined in dictionary,
is used in fitting
methodRef MethodRefType optional
name xs:string optional
Lineshape name from dictionary (see schema documentation)
Source

<xs:element name="Lineshape" type="LineshapeType" minOccurs="1" maxOccurs="unbounded"/>
Element LineshapeType / LineshapeParameter
Namespace http://vamdc.org/xml/xsams/1.0
Diagram
Diagram typesAttributes_xsd.tmp#id40 typesAttributes_xsd.tmp#id38 typesAttributes_xsd.tmp#id39 typesAttributes_xsd.tmp#id37 typesAttributes_xsd.tmp#id750 typesAttributes_xsd.tmp#id733 typesAttributes_xsd.tmp#id734 typesAttributes_xsd.tmp#id735 typesAttributes_xsd.tmp#id736 typesAttributes_xsd.tmp#id732
Type DataFuncType
Type hierarchy
Properties
content: complex
minOccurs: 1
maxOccurs: unbounded
Model Comments{0,1} , SourceRef* , ((Value , Evaluation* , Accuracy*) | FitParameters+)
Children Accuracy, Comments, Evaluation, FitParameters, SourceRef, Value
Instance

<LineshapeParameter methodRef="" name="">
  <Comments>{0,1}</Comments>
  <SourceRef>{0,unbounded}</SourceRef>
</LineshapeParameter>
Attributes
QName Type Fixed Default Use Annotation
methodRef MethodRefType optional
name xs:string required
Source

<xs:element name="LineshapeParameter" type="DataFuncType" minOccurs="1" maxOccurs="unbounded"/>
Element RadiativeTransitionType / Shifting
Namespace http://vamdc.org/xml/xsams/1.0
Annotations

Description of line shifting processes and related parameters
Diagram
Diagram typesAttributes_xsd.tmp#id40 typesAttributes_xsd.tmp#id38 typesAttributes_xsd.tmp#id39 typesAttributes_xsd.tmp#id37 radiative_xsd.tmp#id758 radiative_xsd.tmp#id759 radiative_xsd.tmp#id757 radiative_xsd.tmp#id756
Type ShiftingType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: unbounded
Model Comments{0,1} , SourceRef* , ShiftingParameter+
Children Comments, ShiftingParameter, SourceRef
Instance

<Shifting envRef="" methodRef="" name="">
  <Comments>{0,1}</Comments>
  <SourceRef>{0,unbounded}</SourceRef>
</Shifting>
Attributes
QName Type Fixed Default Use Annotation
envRef EnvironmentRefType optional
methodRef MethodRefType optional
name xs:string optional
Source

<xs:element name="Shifting" type="ShiftingType" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Description of line shifting processes and related parameters</xs:documentation>
  </xs:annotation>
</xs:element>
Element ShiftingType / ShiftingParameter
Namespace http://vamdc.org/xml/xsams/1.0
Diagram
Diagram typesAttributes_xsd.tmp#id40 typesAttributes_xsd.tmp#id38 typesAttributes_xsd.tmp#id39 typesAttributes_xsd.tmp#id37 typesAttributes_xsd.tmp#id750 typesAttributes_xsd.tmp#id733 typesAttributes_xsd.tmp#id734 typesAttributes_xsd.tmp#id735 typesAttributes_xsd.tmp#id736 typesAttributes_xsd.tmp#id732
Type DataFuncType
Type hierarchy
Properties
content: complex
minOccurs: 1
maxOccurs: unbounded
Model Comments{0,1} , SourceRef* , ((Value , Evaluation* , Accuracy*) | FitParameters+)
Children Accuracy, Comments, Evaluation, FitParameters, SourceRef, Value
Instance

<ShiftingParameter methodRef="" name="">
  <Comments>{0,1}</Comments>
  <SourceRef>{0,unbounded}</SourceRef>
</ShiftingParameter>
Attributes
QName Type Fixed Default Use Annotation
methodRef MethodRefType optional
name xs:string required
Source

<xs:element name="ShiftingParameter" type="DataFuncType" minOccurs="1" maxOccurs="unbounded"/>
Element Radiative
Namespace http://vamdc.org/xml/xsams/1.0
Annotations

Radiative transitions (both emission and absorption)
Diagram
Diagram radiative_xsd.tmp#id656 radiative_xsd.tmp#id682 radiative_xsd.tmp#id687 radiative_xsd.tmp#id655
Type RadiativeType
Properties
content: complex
Model AbsorptionCrossSection* , CollisionInducedAbsorptionCrossSection* , RadiativeTransition*
Children AbsorptionCrossSection, CollisionInducedAbsorptionCrossSection, RadiativeTransition
Instance

<Radiative>
  <AbsorptionCrossSection envRef="" groupLabel="" id="" methodRef="">{0,unbounded}</AbsorptionCrossSection>
  <CollisionInducedAbsorptionCrossSection envRef="" id="" methodRef="">{0,unbounded}</CollisionInducedAbsorptionCrossSection>
  <RadiativeTransition groupLabel="" id="" methodRef="" process="">{0,unbounded}</RadiativeTransition>
</Radiative>
Source

<xs:element name="Radiative" type="RadiativeType">
  <xs:annotation>
    <xs:documentation>Radiative transitions (both emission and absorption)</xs:documentation>
  </xs:annotation>
</xs:element>
Complex Type RadiativeType
Namespace http://vamdc.org/xml/xsams/1.0
Diagram
Diagram radiative_xsd.tmp#id656 radiative_xsd.tmp#id682 radiative_xsd.tmp#id687
Used by
Model AbsorptionCrossSection* , CollisionInducedAbsorptionCrossSection* , RadiativeTransition*
Children AbsorptionCrossSection, CollisionInducedAbsorptionCrossSection, RadiativeTransition
Source

<xs:complexType name="RadiativeType">
  <xs:sequence>
    <xs:element name="AbsorptionCrossSection" type="AbsorptionCrossSectionType" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Absorption cross section data</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="CollisionInducedAbsorptionCrossSection" type="CollisionInducedAbsorptionCrossSectionType" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Absorption cross section data</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="RadiativeTransition" type="RadiativeTransitionType" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Description of a specific radiative transition</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Complex Type AbsorptionCrossSectionType
Namespace http://vamdc.org/xml/xsams/1.0
Annotations

Cross Section data of some sort, e.g. a photoabsorption cross section, possibly
with band assignments.
Diagram
Diagram typesAttributes_xsd.tmp#id40 typesAttributes_xsd.tmp#id38 typesAttributes_xsd.tmp#id39 typesAttributes_xsd.tmp#id37 typesAttributes_xsd.tmp#id659 typesAttributes_xsd.tmp#id660 typesAttributes_xsd.tmp#id661 typesAttributes_xsd.tmp#id658 radiative_xsd.tmp#id677 radiative_xsd.tmp#id679 radiative_xsd.tmp#id681 radiative_xsd.tmp#id662 radiative_xsd.tmp#id666
Type extension of SimpleDataTableType
Type hierarchy
Used by
Model Comments{0,1} , SourceRef* , Description{0,1} , X+ , Y , Species{0,1} , BandAssignment*
Children BandAssignment, Comments, Description, SourceRef, Species, X, Y
Attributes
QName Type Fixed Default Use Annotation
envRef EnvironmentRefType optional
groupLabel xs:string optional
id ProcessIDType required
methodRef MethodRefType optional
Source

<xs:complexType name="AbsorptionCrossSectionType">
  <xs:annotation>
    <xs:documentation>Cross Section data of some sort, e.g. a photoabsorption cross section, possibly
				              with band assignments.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="SimpleDataTableType">
      <xs:sequence>
        <xs:element name="Species" type="SpeciesStateRefType" minOccurs="0">
          <xs:annotation>
            <xs:documentation>Reference to a specific species or state</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="BandAssignment" type="BandAssignmentType" minOccurs="0" maxOccurs="unbounded"/>
      </xs:sequence>
      <xs:attribute name="envRef" type="EnvironmentRefType" use="optional"/>
      <xs:attribute name="id" type="ProcessIDType" use="required"/>
      <xs:attribute name="groupLabel" type="xs:string"/>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
Complex Type BandAssignmentType
Namespace http://vamdc.org/xml/xsams/1.0
Annotations

Assignment of a band in a tabulated cross section, giving the centre position (wavelength or
frequency), width and assignment of contributing normal modes, if relevant.
Diagram
Diagram typesAttributes_xsd.tmp#id40 typesAttributes_xsd.tmp#id38 typesAttributes_xsd.tmp#id39 typesAttributes_xsd.tmp#id37 radiative_xsd.tmp#id676 radiative_xsd.tmp#id668 radiative_xsd.tmp#id669 radiative_xsd.tmp#id670
Type extension of PrimaryType
Type hierarchy
Used by
Model Comments{0,1} , SourceRef* , BandCentre{0,1} , BandWidth{0,1} , Modes*
Children BandCentre, BandWidth, Comments, Modes, SourceRef
Attributes
QName Type Fixed Default Use Annotation
methodRef MethodRefType optional
name xs:string optional
Source

<xs:complexType name="BandAssignmentType">
  <xs:annotation>
    <xs:documentation>Assignment of a band in a tabulated cross section, giving the centre position (wavelength or
				              frequency), width and assignment of contributing normal modes, if relevant.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="PrimaryType">
      <xs:sequence>
        <xs:element name="BandCentre" type="DataType" minOccurs="0" maxOccurs="1"/>
        <xs:element name="BandWidth" type="DataType" minOccurs="0" maxOccurs="1"/>
        <xs:element name="Modes" type="ModesType" minOccurs="0" maxOccurs="unbounded"/>
      </xs:sequence>
      <xs:attribute name="name" type="xs:string"/>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
Complex Type ModesType
Namespace http://vamdc.org/xml/xsams/1.0
Diagram
Diagram typesAttributes_xsd.tmp#id40 typesAttributes_xsd.tmp#id38 typesAttributes_xsd.tmp#id39 typesAttributes_xsd.tmp#id37 radiative_xsd.tmp#id675 radiative_xsd.tmp#id672
Type extension of PrimaryType
Type hierarchy
Used by
Model Comments{0,1} , SourceRef* , DeltaV*
Children Comments, DeltaV, SourceRef
Attributes
QName Type Fixed Default Use Annotation
methodRef MethodRefType optional
name xs:string optional
Source

<xs:complexType name="ModesType">
  <xs:complexContent>
    <xs:extension base="PrimaryType">
      <xs:sequence>
        <!--<xs:element name="DeltaV" type="xs:nonNegativeInteger" minOccurs="0" maxOccurs="unbounded"/>-->
        <xs:element name="DeltaV" minOccurs="0" maxOccurs="unbounded">
          <xs:complexType>
            <xs:simpleContent>
              <xs:extension base="xs:nonNegativeInteger">
                <xs:attribute name="modeID" type="NormalModeRefType"/>
              </xs:extension>
            </xs:simpleContent>
          </xs:complexType>
        </xs:element>
      </xs:sequence>
      <xs:attribute name="name" type="xs:string"/>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
Complex Type CollisionInducedAbsorptionCrossSectionType
Namespace http://vamdc.org/xml/xsams/1.0
Annotations

Collision-Induced Absorption Cross Section data, alpha, such that the absorption due to
short-lived pairs of species is I = alpha.p1.p2.
Diagram
Diagram typesAttributes_xsd.tmp#id40 typesAttributes_xsd.tmp#id38 typesAttributes_xsd.tmp#id39 typesAttributes_xsd.tmp#id37 typesAttributes_xsd.tmp#id659 typesAttributes_xsd.tmp#id660 typesAttributes_xsd.tmp#id661 typesAttributes_xsd.tmp#id658 radiative_xsd.tmp#id685 radiative_xsd.tmp#id686 radiative_xsd.tmp#id684
Type extension of SimpleDataTableType
Type hierarchy
Used by
Model Comments{0,1} , SourceRef* , Description{0,1} , X+ , Y , SpeciesRef{2,2}
Children Comments, Description, SourceRef, SpeciesRef, X, Y
Attributes
QName Type Fixed Default Use Annotation
envRef EnvironmentRefType optional
id ProcessIDType required
methodRef MethodRefType optional
Source

<xs:complexType name="CollisionInducedAbsorptionCrossSectionType">
  <xs:annotation>
    <xs:documentation>Collision-Induced Absorption Cross Section data, alpha, such that the absorption due to
				short-lived pairs of species is I = alpha.p1.p2.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="SimpleDataTableType">
      <xs:sequence>
        <xs:element name="SpeciesRef" type="SpeciesRefType" minOccurs="2" maxOccurs="2">
          <xs:annotation>
            <xs:documentation>Reference to the species of the collision pair</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:sequence>
      <xs:attribute name="envRef" type="EnvironmentRefType" use="optional"/>
      <xs:attribute name="id" type="ProcessIDType" use="required"/>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
Complex Type RadiativeTransitionType
Namespace http://vamdc.org/xml/xsams/1.0
Diagram
Diagram typesAttributes_xsd.tmp#id40 typesAttributes_xsd.tmp#id38 typesAttributes_xsd.tmp#id39 typesAttributes_xsd.tmp#id37 radiative_xsd.tmp#id760 radiative_xsd.tmp#id761 radiative_xsd.tmp#id762 radiative_xsd.tmp#id689 radiative_xsd.tmp#id699 radiative_xsd.tmp#id700 radiative_xsd.tmp#id701 radiative_xsd.tmp#id702 radiative_xsd.tmp#id715 radiative_xsd.tmp#id722 radiative_xsd.tmp#id727 radiative_xsd.tmp#id755
Type extension of PrimaryType
Type hierarchy
Used by
Model Comments{0,1} , SourceRef* , EnergyWavelength , UpperStateRef{0,1} , LowerStateRef{0,1} , SpeciesRef{0,1} , Probability* , ProcessClass* , SatelliteLine* , Broadening* , Shifting*
Children Broadening, Comments, EnergyWavelength, LowerStateRef, Probability, ProcessClass, SatelliteLine, Shifting, SourceRef, SpeciesRef, UpperStateRef
Attributes
QName Type Fixed Default Use Annotation
groupLabel xs:string optional
id ProcessIDType required
methodRef MethodRefType optional
process TransitionType optional
Source

<xs:complexType name="RadiativeTransitionType">
  <xs:complexContent>
    <xs:extension base="PrimaryType">
      <xs:sequence>
        <xs:element name="EnergyWavelength" type="EnergyWavelengthType">
          <xs:annotation>
            <xs:documentation>List of energy/spectrum parameters</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="UpperStateRef" type="StateRefType" minOccurs="0">
          <xs:annotation>
            <xs:documentation>Reference to the upper state</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="LowerStateRef" type="StateRefType" minOccurs="0">
          <xs:annotation>
            <xs:documentation>Reference to the lower state</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="SpeciesRef" type="SpeciesRefType" minOccurs="0">
          <xs:annotation>
            <xs:documentation>Reference to specie</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="Probability" type="RadiativeTransitionProbabilityType" minOccurs="0" maxOccurs="unbounded">
          <xs:annotation>
            <xs:documentation>Radiative transition probability and related parameters</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="ProcessClass" type="ProcessClassType" minOccurs="0" maxOccurs="unbounded">
          <xs:annotation>
            <xs:documentation>process description</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="SatelliteLine" type="SatelliteLineProperties" minOccurs="0" maxOccurs="unbounded">
          <xs:annotation>
            <xs:documentation>Satellite line properties</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="Broadening" type="BroadeningType" minOccurs="0" maxOccurs="unbounded">
          <xs:annotation>
            <xs:documentation>Description of line broadening processes and related parameters</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="Shifting" type="ShiftingType" minOccurs="0" maxOccurs="unbounded">
          <xs:annotation>
            <xs:documentation>Description of line shifting processes and related parameters</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:sequence>
      <xs:attribute name="id" type="ProcessIDType" use="required"/>
      <xs:attribute name="groupLabel" type="xs:string"/>
      <xs:attribute name="process" type="TransitionType"/>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
Complex Type EnergyWavelengthType
Namespace http://vamdc.org/xml/xsams/1.0
Diagram
Diagram typesAttributes_xsd.tmp#id40 typesAttributes_xsd.tmp#id38 typesAttributes_xsd.tmp#id39 typesAttributes_xsd.tmp#id37 radiative_xsd.tmp#id691 radiative_xsd.tmp#id692 radiative_xsd.tmp#id697 radiative_xsd.tmp#id698
Type extension of PrimaryType
Type hierarchy
Used by
Model Comments{0,1} , SourceRef* , Wavenumber* , Wavelength* , Energy* , Frequency*
Children Comments, Energy, Frequency, SourceRef, Wavelength, Wavenumber
Attributes
QName Type Fixed Default Use Annotation
methodRef MethodRefType optional
Source

<xs:complexType name="EnergyWavelengthType">
  <xs:complexContent>
    <xs:extension base="PrimaryType">
      <xs:sequence>
        <xs:element name="Wavenumber" type="DataType" minOccurs="0" maxOccurs="unbounded">
          <xs:annotation>
            <xs:documentation>Transition wavenumber</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="Wavelength" type="wlType" minOccurs="0" maxOccurs="unbounded">
          <xs:annotation>
            <xs:documentation>Transition wavelength</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="Energy" type="DataType" minOccurs="0" maxOccurs="unbounded">
          <xs:annotation>
            <xs:documentation>Transition energy</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="Frequency" type="DataType" minOccurs="0" maxOccurs="unbounded">
          <xs:annotation>
            <xs:documentation>Transition frequency</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
Complex Type wlType
Namespace http://vamdc.org/xml/xsams/1.0
Diagram
Diagram typesAttributes_xsd.tmp#id40 typesAttributes_xsd.tmp#id38 typesAttributes_xsd.tmp#id39 typesAttributes_xsd.tmp#id37 typesAttributes_xsd.tmp#id44 typesAttributes_xsd.tmp#id48 typesAttributes_xsd.tmp#id52 typesAttributes_xsd.tmp#id43 radiative_xsd.tmp#id695 radiative_xsd.tmp#id696 radiative_xsd.tmp#id694
Type extension of DataType
Type hierarchy
Used by
Model Comments{0,1} , SourceRef* , Value , Evaluation* , Accuracy* , AirToVacuum{0,1}
Children Accuracy, AirToVacuum, Comments, Evaluation, SourceRef, Value
Attributes
QName Type Fixed Default Use Annotation
envRef EnvironmentRefType optional
methodRef MethodRefType optional
vacuum xs:boolean true optional
Source

<xs:complexType name="wlType">
  <xs:complexContent>
    <xs:extension base="DataType">
      <xs:sequence>
        <xs:element name="AirToVacuum" type="DataType" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation/>
          </xs:annotation>
        </xs:element>
      </xs:sequence>
      <xs:attribute name="envRef" type="EnvironmentRefType"/>
      <xs:attribute name="vacuum" type="xs:boolean" default="true"/>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
Complex Type RadiativeTransitionProbabilityType
Namespace http://vamdc.org/xml/xsams/1.0
Annotations

spontaneous transition probability, or Einstein coefficient
Diagram
Diagram typesAttributes_xsd.tmp#id40 typesAttributes_xsd.tmp#id38 typesAttributes_xsd.tmp#id39 typesAttributes_xsd.tmp#id37 radiative_xsd.tmp#id704 radiative_xsd.tmp#id705 radiative_xsd.tmp#id706 radiative_xsd.tmp#id707 radiative_xsd.tmp#id708 radiative_xsd.tmp#id709 radiative_xsd.tmp#id710 radiative_xsd.tmp#id712 radiative_xsd.tmp#id714
Type extension of PrimaryType
Type hierarchy
Used by
Model Comments{0,1} , SourceRef* , TransitionProbabilityA{0,1} , OscillatorStrength{0,1} , LineStrength{0,1} , WeightedOscillatorStrength{0,1} , Log10WeightedOscillatorStrength{0,1} , IdealisedIntensity{0,1} , Multipole* , TransitionKind{0,1} , EffectiveLandeFactor{0,1}
Children Comments, EffectiveLandeFactor, IdealisedIntensity, LineStrength, Log10WeightedOscillatorStrength, Multipole, OscillatorStrength, SourceRef, TransitionKind, TransitionProbabilityA, WeightedOscillatorStrength
Attributes
QName Type Fixed Default Use Annotation
methodRef MethodRefType optional
Source

<xs:complexType name="RadiativeTransitionProbabilityType">
  <xs:annotation>
    <xs:documentation>spontaneous transition probability, or Einstein coefficient</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="PrimaryType">
      <xs:sequence>
        <xs:element name="TransitionProbabilityA" type="DataType" minOccurs="0">
          <xs:annotation>
            <xs:documentation>Transition probability (Einstein coefficient)</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="OscillatorStrength" type="DataType" minOccurs="0">
          <xs:annotation>
            <xs:documentation>Oscillator strength</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="LineStrength" type="DataType" minOccurs="0">
          <xs:annotation>
            <xs:documentation>Line strength</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="WeightedOscillatorStrength" type="DataType" minOccurs="0">
          <xs:annotation>
            <xs:documentation>Weighted oscillator strength</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="Log10WeightedOscillatorStrength" type="DataType" minOccurs="0">
          <xs:annotation>
            <xs:documentation>Log10 of the weighted oscillator strength</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="IdealisedIntensity" type="DataType" minOccurs="0">
          <xs:annotation>
            <xs:documentation>Line intensity for some specific conditions.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="Multipole" type="MultipoleType" minOccurs="0" maxOccurs="unbounded">
          <xs:annotation>
            <xs:documentation>Transition multipole characterisation. Example: E2, M2</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="TransitionKind" type="TransitionKindType" minOccurs="0">
          <xs:annotation>
            <xs:documentation>Transition kind (polarizability)</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="EffectiveLandeFactor" type="DataType" minOccurs="0">
          <xs:annotation>
            <xs:documentation>Effective Lande factor for transition</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
Simple Type MultipoleType
Namespace http://vamdc.org/xml/xsams/1.0
Annotations

Radiative transition multipole
Diagram
Diagram
Type restriction of xs:string
Facets
pattern (E|M)[1-9]\d*
Used by
Source

<xs:simpleType name="MultipoleType">
  <xs:annotation>
    <xs:documentation>Radiative transition multipole</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:pattern value="(E|M)[1-9]\d*"/>
  </xs:restriction>
</xs:simpleType>
Simple Type TransitionKindType
Namespace http://vamdc.org/xml/xsams/1.0
Annotations

Type of transition, e.g. Polarizability
Diagram
Diagram
Type restriction of xs:string
Facets
pattern Polarizability
Used by
Source

<xs:simpleType name="TransitionKindType">
  <xs:annotation>
    <xs:documentation>Type of transition, e.g. Polarizability</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:pattern value="Polarizability"/>
  </xs:restriction>
</xs:simpleType>
Complex Type SatelliteLineProperties
Namespace http://vamdc.org/xml/xsams/1.0
Annotations

Satellite line properties.
Probably an id should be added to radiative transition, and reference here, to identify those lines.
Diagram
Diagram radiative_xsd.tmp#id724 radiative_xsd.tmp#id725 radiative_xsd.tmp#id726
Used by
Model DielectronicIntensityFactor{0,1} , CollisionalIntensityFactor{0,1} , BranchingRatio{0,1}
Children BranchingRatio, CollisionalIntensityFactor, DielectronicIntensityFactor
Source

<xs:complexType name="SatelliteLineProperties">
  <xs:annotation>
    <xs:documentation>Satellite line properties.
				Probably an id should be added to radiative transition, and reference here, to identify those lines.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="DielectronicIntensityFactor" type="DataType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Dielectronic satellite intensity factor</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="CollisionalIntensityFactor" type="DataType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Collisional satellite intensity factor</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="BranchingRatio" type="DataType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Satellite branching ratio</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Complex Type BroadeningType
Namespace http://vamdc.org/xml/xsams/1.0
Annotations

Specific broadening mechanism description.
Diagram
Diagram typesAttributes_xsd.tmp#id40 typesAttributes_xsd.tmp#id38 typesAttributes_xsd.tmp#id39 typesAttributes_xsd.tmp#id37 radiative_xsd.tmp#id753 radiative_xsd.tmp#id754 radiative_xsd.tmp#id729
Type extension of PrimaryType
Type hierarchy
Used by
Model Comments{0,1} , SourceRef* , Lineshape+
Children Comments, Lineshape, SourceRef
Attributes
QName Type Fixed Default Use Annotation
envRef EnvironmentRefType optional
methodRef MethodRefType optional
name xs:string required
Broadening name
Source

<xs:complexType name="BroadeningType">
  <xs:annotation>
    <xs:documentation>Specific broadening mechanism description.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="PrimaryType">
      <xs:sequence>
        <xs:element name="Lineshape" type="LineshapeType" minOccurs="1" maxOccurs="unbounded"/>
      </xs:sequence>
      <xs:attribute name="name" type="xs:string" use="required">
        <xs:annotation>
          <xs:documentation>Broadening name</xs:documentation>
        </xs:annotation>
      </xs:attribute>
      <xs:attribute name="envRef" type="EnvironmentRefType"/>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
Complex Type LineshapeType
Namespace http://vamdc.org/xml/xsams/1.0
Diagram
Diagram typesAttributes_xsd.tmp#id40 typesAttributes_xsd.tmp#id38 typesAttributes_xsd.tmp#id39 typesAttributes_xsd.tmp#id37 radiative_xsd.tmp#id751 radiative_xsd.tmp#id752 radiative_xsd.tmp#id731
Type extension of PrimaryType
Type hierarchy
Used by
Model Comments{0,1} , SourceRef* , LineshapeParameter+
Children Comments, LineshapeParameter, SourceRef
Attributes
QName Type Fixed Default Use Annotation
functionRef FunctionRefType optional
Arbitrary function for lineshape representation,
may be used if some special lineshape, not defined in dictionary,
is used in fitting
methodRef MethodRefType optional
name xs:string optional
Lineshape name from dictionary (see schema documentation)
Source

<xs:complexType name="LineshapeType">
  <xs:complexContent>
    <xs:extension base="PrimaryType">
      <xs:sequence>
        <xs:element name="LineshapeParameter" type="DataFuncType" minOccurs="1" maxOccurs="unbounded"/>
      </xs:sequence>
      <xs:attribute name="name" type="xs:string">
        <xs:annotation>
          <xs:documentation>Lineshape name from dictionary (see schema documentation)</xs:documentation>
        </xs:annotation>
      </xs:attribute>
      <xs:attribute name="functionRef" type="FunctionRefType">
        <xs:annotation>
          <xs:documentation>Arbitrary function for lineshape representation,
							may be used if some special lineshape, not defined in dictionary,
							is used in fitting</xs:documentation>
        </xs:annotation>
      </xs:attribute>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
Complex Type ShiftingType
Namespace http://vamdc.org/xml/xsams/1.0
Annotations

Description of line shifting processes and related parameters
Diagram
Diagram typesAttributes_xsd.tmp#id40 typesAttributes_xsd.tmp#id38 typesAttributes_xsd.tmp#id39 typesAttributes_xsd.tmp#id37 radiative_xsd.tmp#id758 radiative_xsd.tmp#id759 radiative_xsd.tmp#id757
Type extension of PrimaryType
Type hierarchy
Used by
Model Comments{0,1} , SourceRef* , ShiftingParameter+
Children Comments, ShiftingParameter, SourceRef
Attributes
QName Type Fixed Default Use Annotation
envRef EnvironmentRefType optional
methodRef MethodRefType optional
name xs:string optional
Source

<xs:complexType name="ShiftingType">
  <xs:annotation>
    <xs:documentation>Description of line shifting processes and related parameters</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="PrimaryType">
      <xs:sequence>
        <xs:element name="ShiftingParameter" type="DataFuncType" minOccurs="1" maxOccurs="unbounded"/>
      </xs:sequence>
      <xs:attribute name="name" type="xs:string"/>
      <xs:attribute name="envRef" type="EnvironmentRefType"/>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
Attribute ModesType / DeltaV / @modeID
Namespace No namespace
Type NormalModeRefType
Properties
content: simple
Facets
pattern (\i\c*) & ([\i-[:]][\c-[:]]*) & (V.+)
Used by
Source

<xs:attribute name="modeID" type="NormalModeRefType"/>
Attribute ModesType / @name
Namespace No namespace
Type xs:string
Properties
content: simple
Used by
Complex Type ModesType
Source

<xs:attribute name="name" type="xs:string"/>
Attribute BandAssignmentType / @name
Namespace No namespace
Type xs:string
Properties
content: simple
Used by
Complex Type BandAssignmentType
Source

<xs:attribute name="name" type="xs:string"/>
Attribute AbsorptionCrossSectionType / @envRef
Namespace No namespace
Type EnvironmentRefType
Properties
use: optional
Facets
pattern (\i\c*) & ([\i-[:]][\c-[:]]*) & (E.+)
Used by
Source

<xs:attribute name="envRef" type="EnvironmentRefType" use="optional"/>
Attribute AbsorptionCrossSectionType / @id
Namespace No namespace
Type ProcessIDType
Properties
use: required
Facets
pattern (\i\c*) & ([\i-[:]][\c-[:]]*) & (P.+)
Used by
Source

<xs:attribute name="id" type="ProcessIDType" use="required"/>
Attribute AbsorptionCrossSectionType / @groupLabel
Namespace No namespace
Type xs:string
Properties
content: simple
Used by
Source

<xs:attribute name="groupLabel" type="xs:string"/>
Attribute CollisionInducedAbsorptionCrossSectionType / @envRef
Namespace No namespace
Type EnvironmentRefType
Properties
use: optional
Facets
pattern (\i\c*) & ([\i-[:]][\c-[:]]*) & (E.+)
Used by
Source

<xs:attribute name="envRef" type="EnvironmentRefType" use="optional"/>
Attribute CollisionInducedAbsorptionCrossSectionType / @id
Namespace No namespace
Type ProcessIDType
Properties
use: required
Facets
pattern (\i\c*) & ([\i-[:]][\c-[:]]*) & (P.+)
Used by
Source

<xs:attribute name="id" type="ProcessIDType" use="required"/>
Attribute wlType / @envRef
Namespace No namespace
Type EnvironmentRefType
Properties
content: simple
Facets
pattern (\i\c*) & ([\i-[:]][\c-[:]]*) & (E.+)
Used by
Complex Type wlType
Source

<xs:attribute name="envRef" type="EnvironmentRefType"/>
Attribute wlType / @vacuum
Namespace No namespace
Type xs:boolean
Properties
default: true
Used by
Complex Type wlType
Source

<xs:attribute name="vacuum" type="xs:boolean" default="true"/>
Attribute LineshapeType / @name
Namespace No namespace
Annotations

Lineshape name from dictionary (see schema documentation)
Type xs:string
Properties
content: simple
Used by
Complex Type LineshapeType
Source

<xs:attribute name="name" type="xs:string">
  <xs:annotation>
    <xs:documentation>Lineshape name from dictionary (see schema documentation)</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute LineshapeType / @functionRef
Namespace No namespace
Annotations

Arbitrary function for lineshape representation,
may be used if some special lineshape, not defined in dictionary,
is used in fitting
Type FunctionRefType
Properties
content: simple
Facets
pattern (\i\c*) & ([\i-[:]][\c-[:]]*) & (F.+)
Used by
Complex Type LineshapeType
Source

<xs:attribute name="functionRef" type="FunctionRefType">
  <xs:annotation>
    <xs:documentation>Arbitrary function for lineshape representation,
							may be used if some special lineshape, not defined in dictionary,
							is used in fitting</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute BroadeningType / @name
Namespace No namespace
Annotations

Broadening name
Type xs:string
Properties
use: required
Used by
Complex Type BroadeningType
Source

<xs:attribute name="name" type="xs:string" use="required">
  <xs:annotation>
    <xs:documentation>Broadening name</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute BroadeningType / @envRef
Namespace No namespace
Type EnvironmentRefType
Properties
content: simple
Facets
pattern (\i\c*) & ([\i-[:]][\c-[:]]*) & (E.+)
Used by
Complex Type BroadeningType
Source

<xs:attribute name="envRef" type="EnvironmentRefType"/>
Attribute ShiftingType / @name
Namespace No namespace
Type xs:string
Properties
content: simple
Used by
Complex Type ShiftingType
Source

<xs:attribute name="name" type="xs:string"/>
Attribute ShiftingType / @envRef
Namespace No namespace
Type EnvironmentRefType
Properties
content: simple
Facets
pattern (\i\c*) & ([\i-[:]][\c-[:]]*) & (E.+)
Used by
Complex Type ShiftingType
Source

<xs:attribute name="envRef" type="EnvironmentRefType"/>
Attribute RadiativeTransitionType / @id
Namespace No namespace
Type ProcessIDType
Properties
use: required
Facets
pattern (\i\c*) & ([\i-[:]][\c-[:]]*) & (P.+)
Used by
Source

<xs:attribute name="id" type="ProcessIDType" use="required"/>
Attribute RadiativeTransitionType / @groupLabel
Namespace No namespace
Type xs:string
Properties
content: simple
Used by
Source

<xs:attribute name="groupLabel" type="xs:string"/>
Attribute RadiativeTransitionType / @process
Namespace No namespace
Type TransitionType
Properties
content: simple
Facets
enumeration excitation
enumeration deexcitation
Used by
Source

<xs:attribute name="process" type="TransitionType"/>
XML Schema documentation generated by ® XML Editor.
